Why Many Utility-Scale PV Plants Prefer SVG Over Capacitor Banks
SVG VS Capacitor Bank
⚠️ The challenge starts when the sun goes down.
During the day:
✔ Modern PV inverters can provide reactive power support.
✔ The demand for fixed capacitor banks is significantly reduced.
But at night:
The inverters stop operating.
Reactive power regulation from the inverters disappears.
The electrical characteristics of the plant change completely.
🔹 Why does the PV plant become capacitive?
Two main reasons:
① Long MV collection cables
② Inverter LCL filters
➜ As a result, the entire PV plant may behave as a capacitive network, especially during nighttime or light-load conditions.
⚠️ Why isn't a capacitor bank the ideal solution?
A capacitor bank is designed to provide capacitive reactive power
This works well when the system is predominantly inductive.
At night, the long MV collection cables and inverter LCL filters can make the entire system capacitive and PF=0 (No sunlight, no power)
✅ Why SVG is a better choice
An SVG can:
✔ Supply both inductive and capacitive reactive power.
✔ Respond within milliseconds to rapid irradiance and load changes.
✔ Maintain stable voltage and power factor throughout the day.
For large utility-scale PV plants, SVG also provides greater flexibility for future grid code requirements.
💡 Final Solution
Instead of focusing only on the initial investment, we recommended an SVG-based solution that could handle both daytime and nighttime operating conditions.
➜ One solution.
➜ Multiple operating scenarios.
➜ Long-term grid compliance.
Power quality is never about choosing the cheapest initial investment equipment.
It's about choosing the right solution for every operating condition.
#PowerQuality #ReactivePower #EnergyEfficiency #SVG #PVSYSTEM #Solarpower #Capacitorbank #industrycontrol #Powerqualitysolutions #StaticVarGenerator #PowerFactorCorrection #GridStability #EnergyManagementEquipment #PFC
Recently Posted
-
A 267 ms Voltage Sag Shut Down an Entire Production Line. Here's What Really Happened
July 2, 2026Many engineers believe that if equipment suddenly stops, the first solution is to install a larger UPS.❓However, a real power qual
Read More -

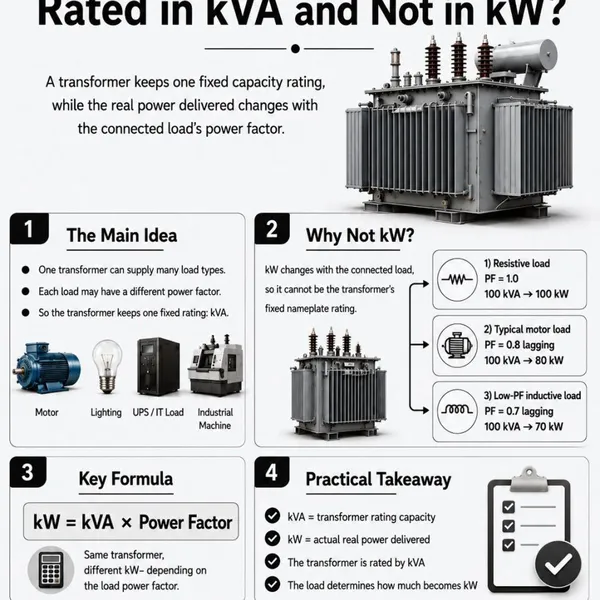

Difference Between Transformer KW and KVA: Why KVA Is the Standard Unit
